Suez · Sewage lifting station
Al Gabalayat Pumping Station
Suez, Egypt · 2020
- Capacity
- 40,000 m³/day
- Location
- Suez, Egypt
- Client
- Suez Wastewater Company
- Scope
- Civil + electromechanical rehabilitation
- Status
- Opened October 2020
- Operation & maintenance
- 40,000 m³/day
Overview
Replacement and renewal of the Al Gabalayat sewage lifting station in Suez, with a capacity of 40,000 m³/day.
New 250 L/s main pumps with a spare, new suction and discharge lines, switchgear and a 500 kVA standby generator, together with structural restoration of the station and its sump.
Civil works
- Electrical foundation works
- Reinforcement and restoration of walls, columns, ceilings and beams
- Supply and installation of sanitary works
- Interior restoration and insulation of the sump
Electromechanical works

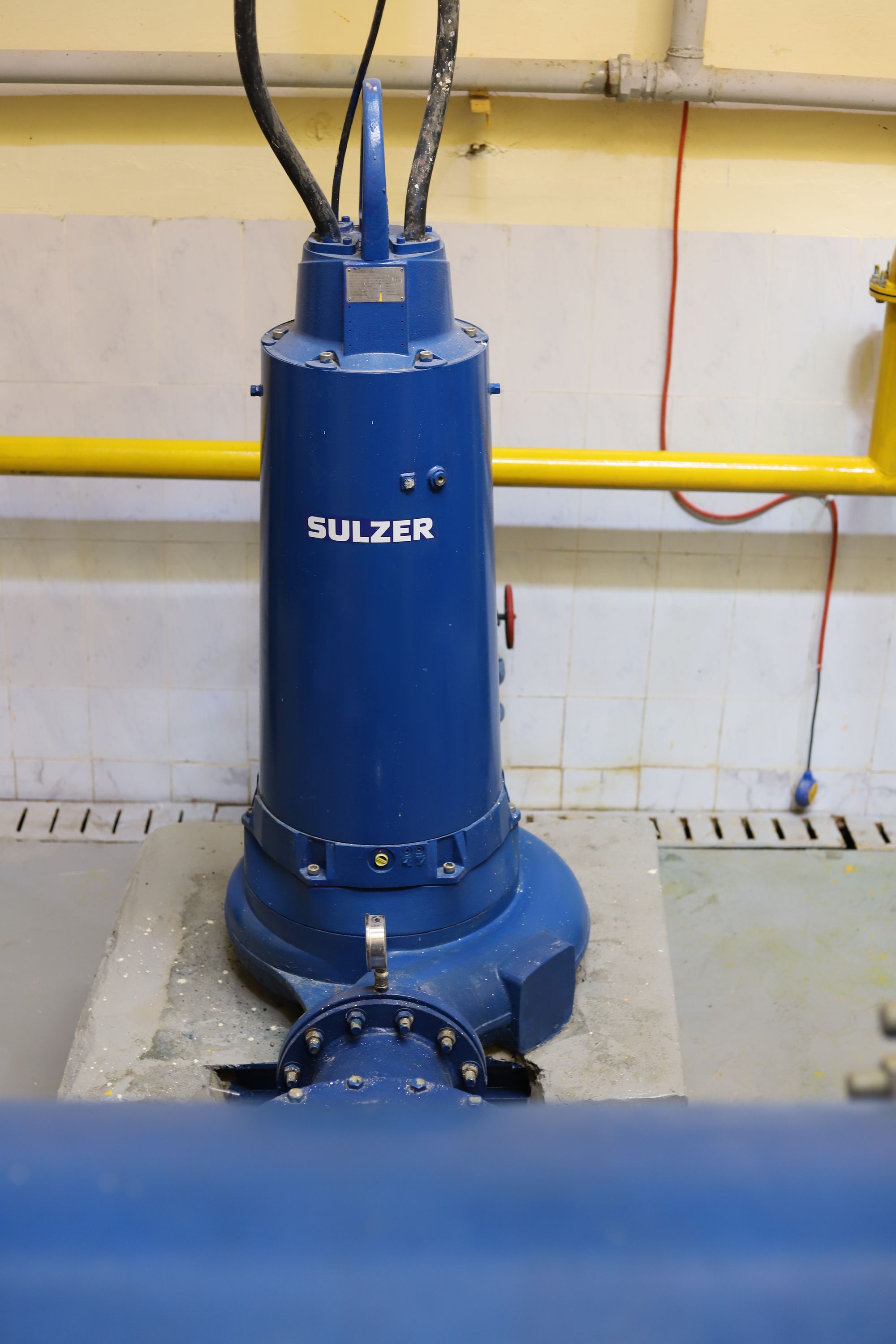

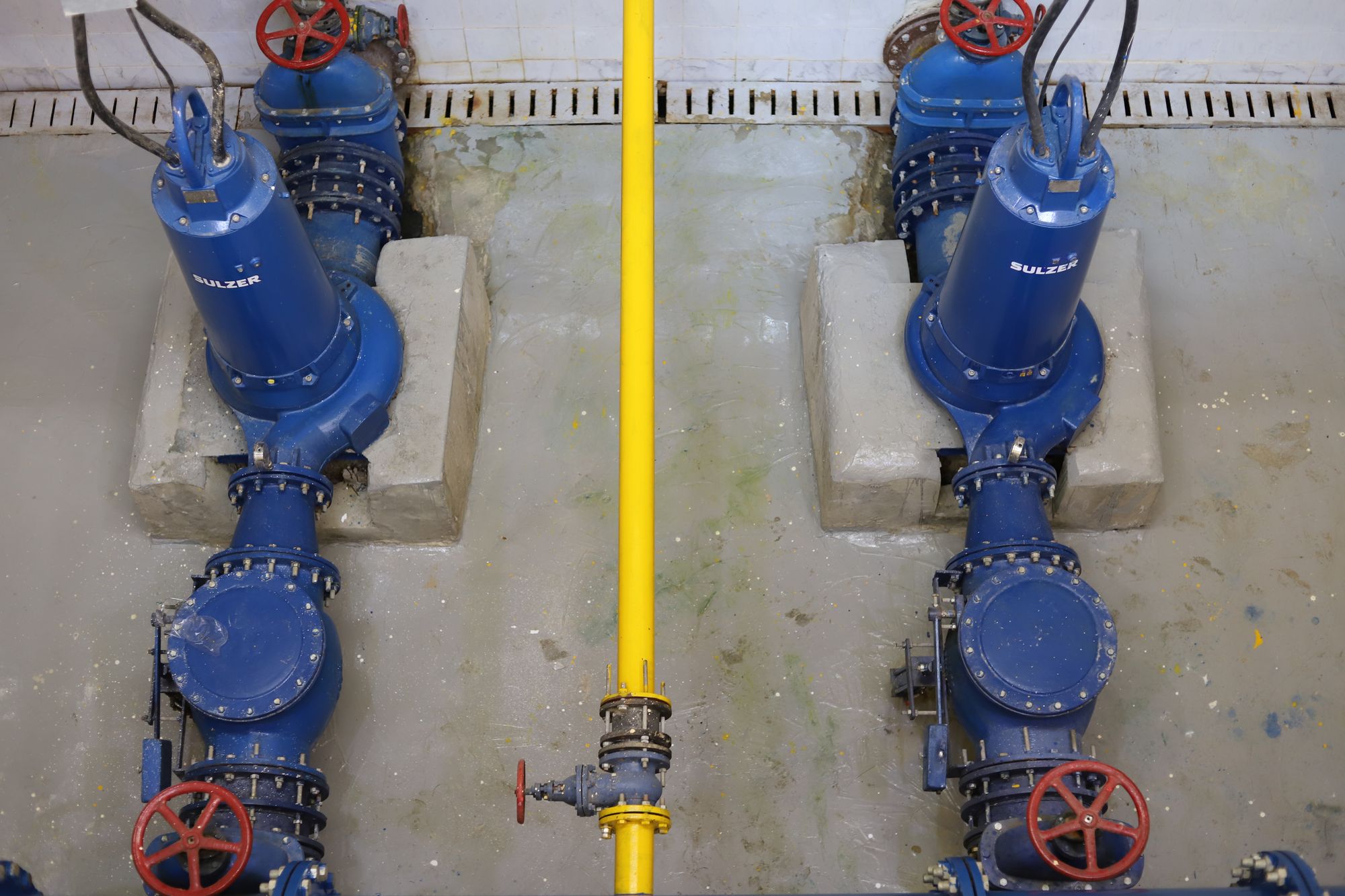

- Main pumps replaced (250 L/s, 22 m head) plus a spare pump

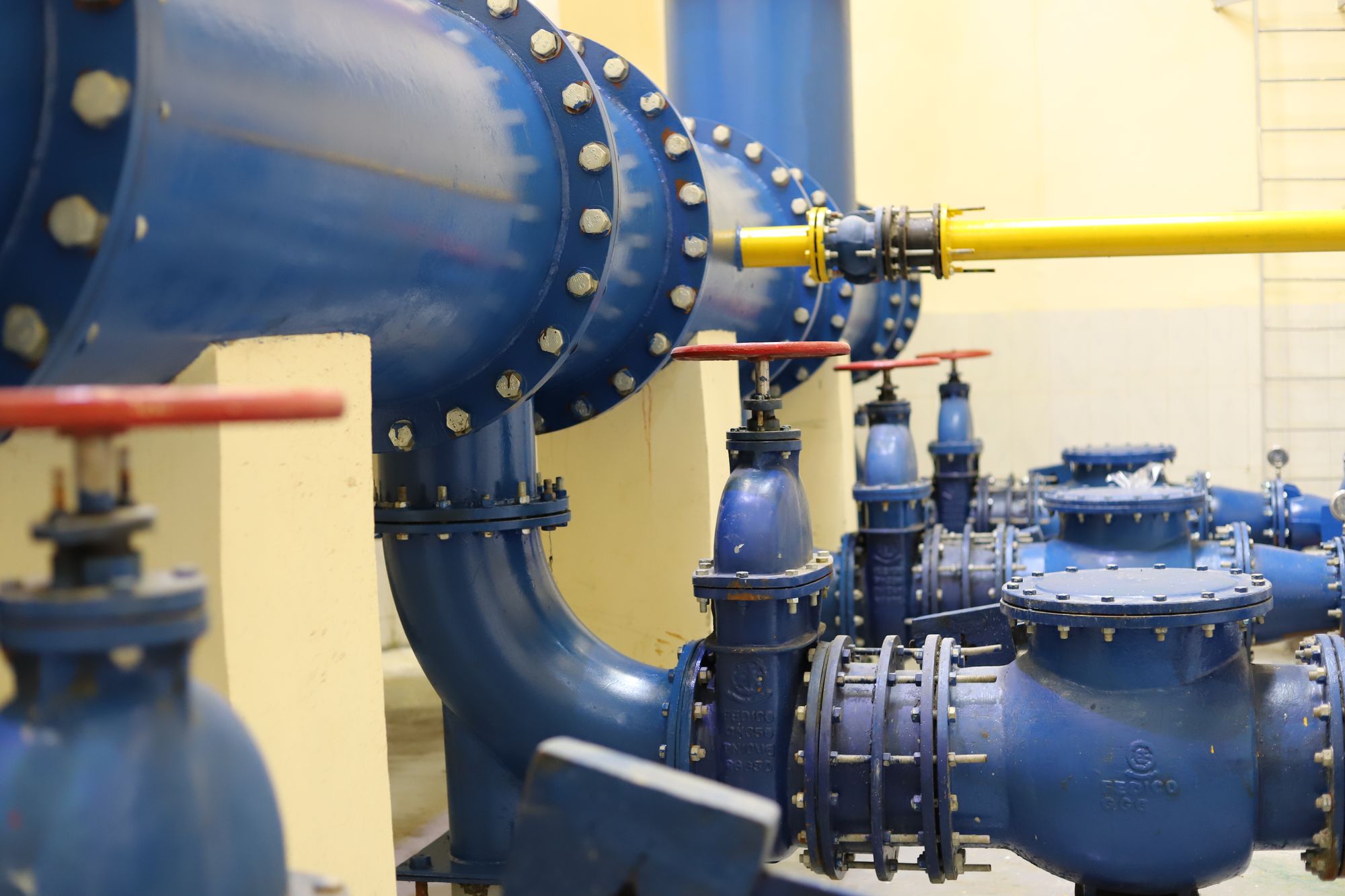

- Replacement of all suction and discharge lines, valves and special parts

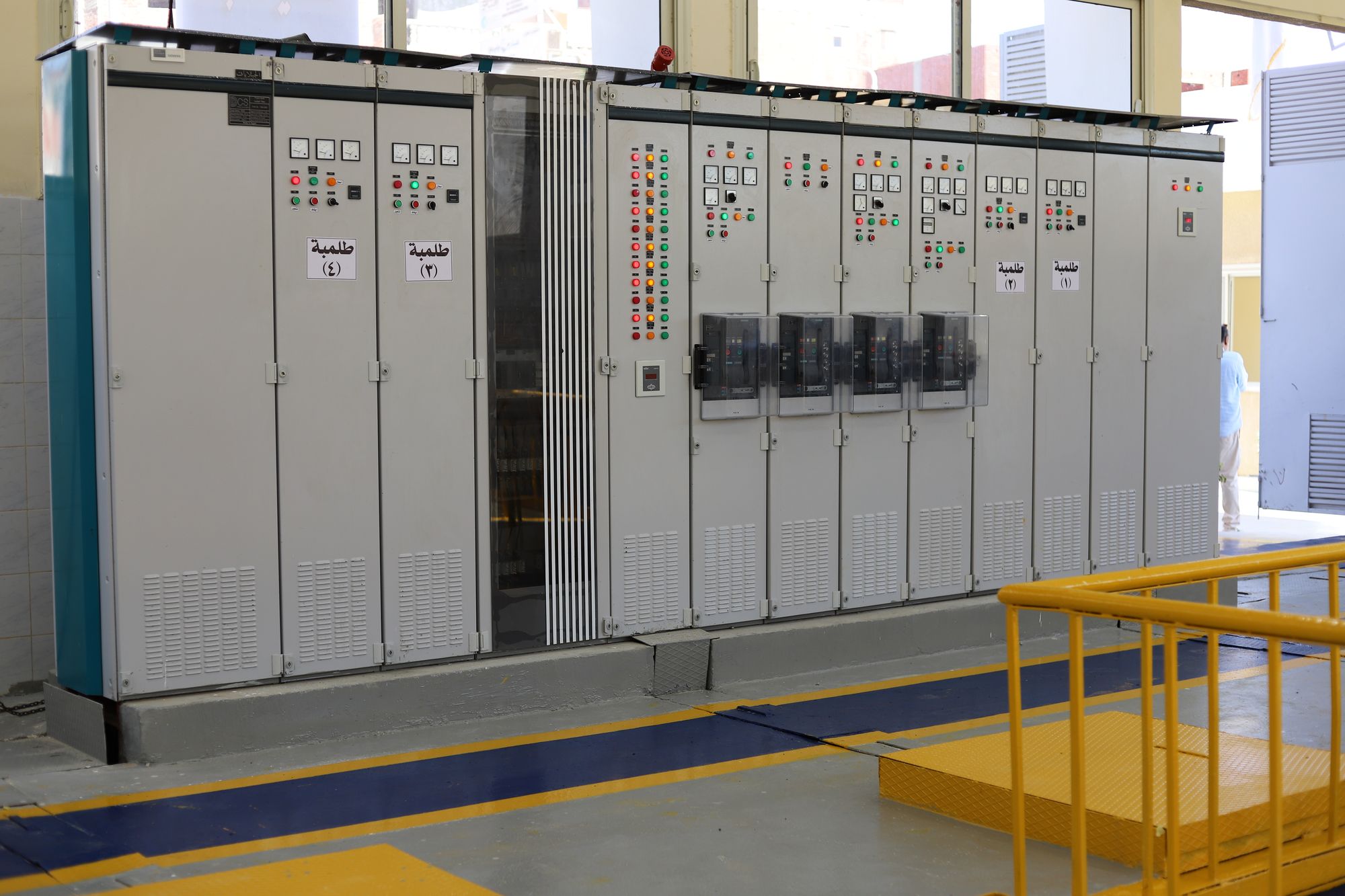

- Low- and medium-voltage panels
- 500 kVA generator
- Earthing system
Milestone · October 2020
Al Arbaeen and Al Gabalayat open
Two renewed sewage lifting stations in Suez enter service at an official opening ceremony.
