Suez · Sewage lifting station

Old Zarb Pumping Station

Suez, Egypt · 2021

Capacity: 34,000 m³/day
Location: Suez, Egypt
Client: Suez Wastewater Company
Scope: Civil + electromechanical rehabilitation
Status: Opened November 2021
Operation & maintenance: 34,000 m³/day

Overview

Replacement and renewal of the Old Zarb sewage lifting station in Suez, with a capacity of 34,000 m³/day.

Three existing submersible pumps were rehabilitated, the dewatering pumps changed and every suction and discharge line replaced. The electrical system was rebuilt and the station's structure restored. Old Zarb is also part of our operation and maintenance work in Suez.

Civil works

Electrical foundation works
Reinforcement and restoration of walls, columns, ceilings and beams
Sanitary works and rain drainage

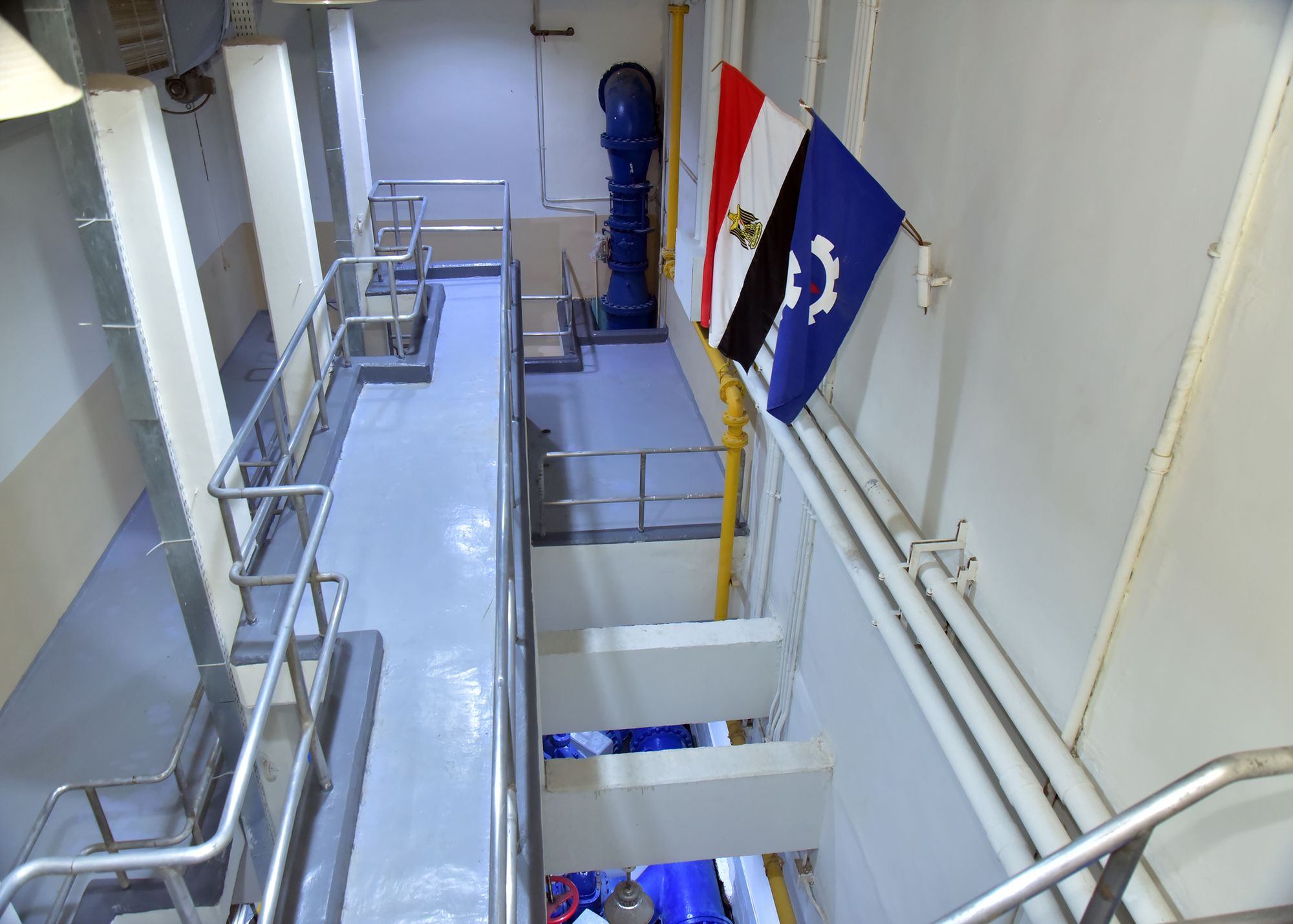

Interior restoration and insulation of the sump
Construction of the station wall
Interior and exterior finishing works

Electromechanical works

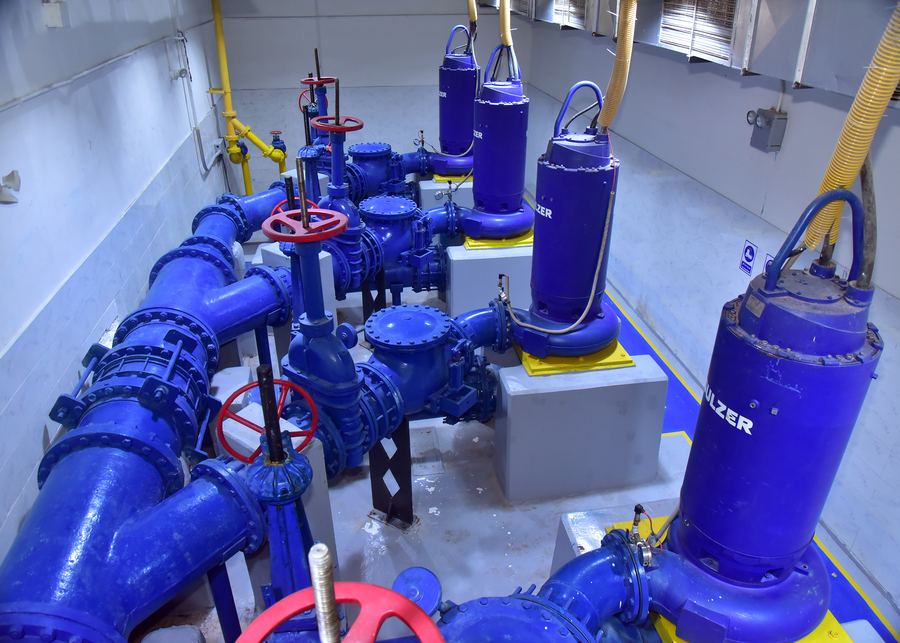

Rehabilitation of three submersible pumps (200 L/s, 20 m head) and new dewatering pumps
Replacement of all suction and discharge lines, valves and special parts

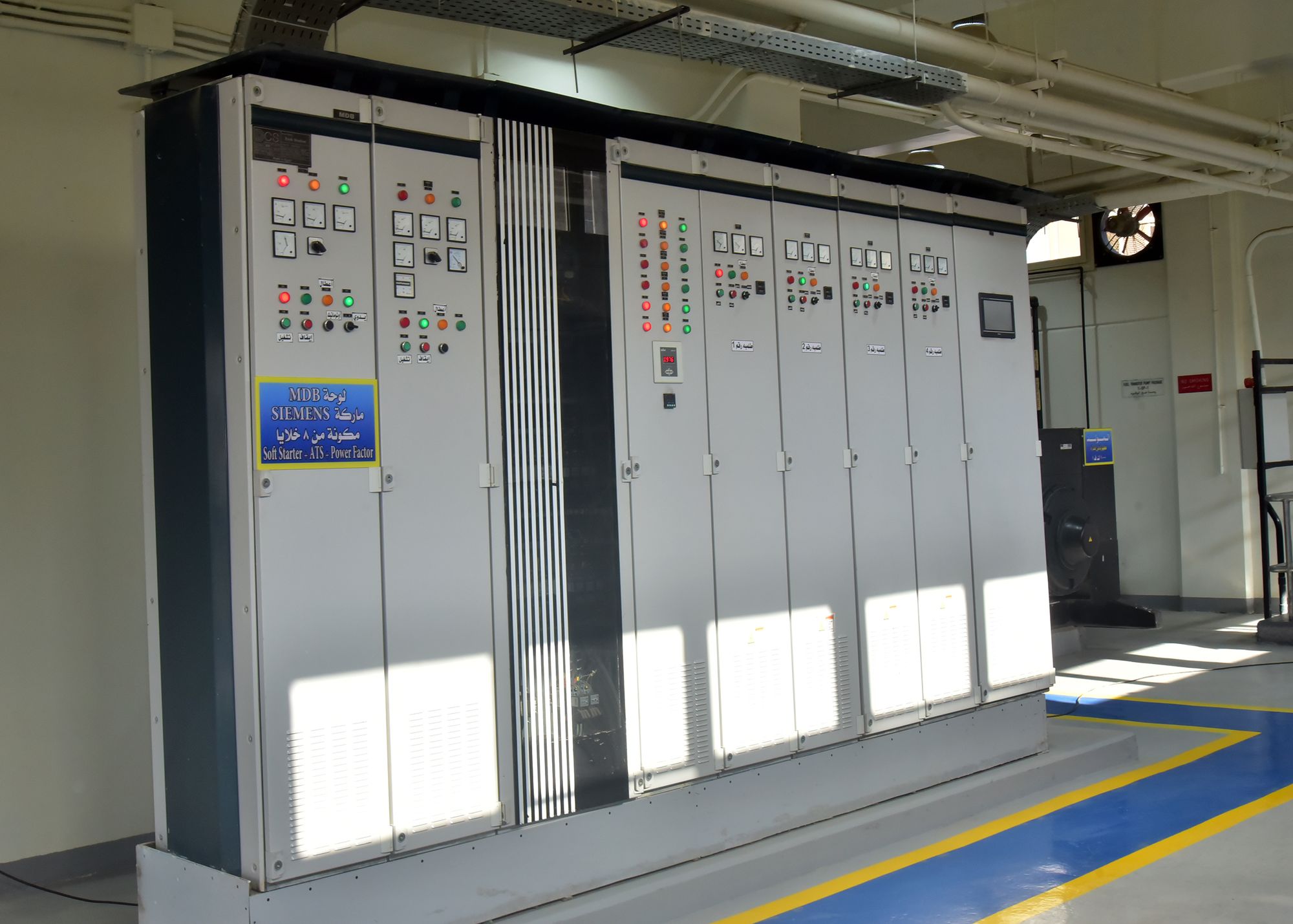

Low- and medium-voltage panels
Earthing system
Core plant systems: ventilation fans and jib crane
